Minimum Theremin Update Instructions
(back to 2006 Minimum Theremin article)

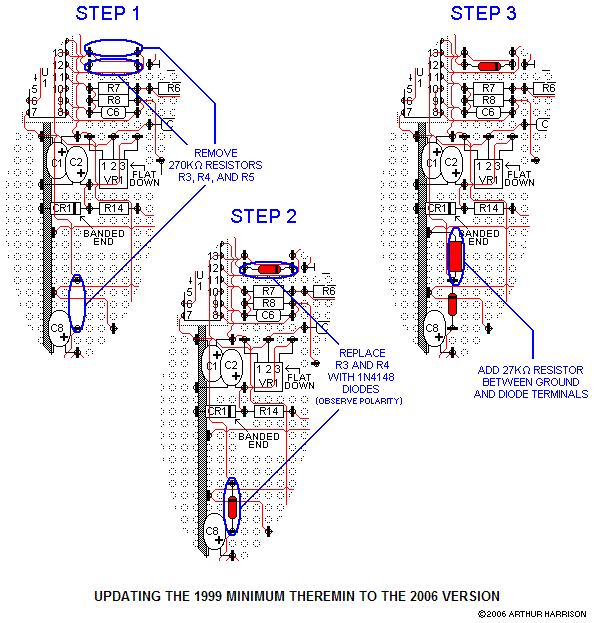

The old version (1999) of the Minimum Theremin lay-out is shown for reference in Figure 1. Follow the three steps in Figure 2 to update the old version to the new version.

You will need the following items:

DESCRIPTION	VALUE	MANUFACTURER	MANUFACTURER PART NUMBER	SUPPLIER	SUPPLIER STOCK NUMBER	QTY
DIODE	150mA, 100V, DO-35 CASE	VISHAY SEMICONDUCTORS	1N4148	MOUSER	78-1N4148	2
RESISTOR, CARBON FILM	27K OHM, 5%, 1/4 WATT	XICON	291-27K-RC	MOUSER	291-27K-RC	1

Figure 1

Figure 2
